PC-12 Jack Adapter
Fusion 360 render gallery — the axle/jack adapter from Arrigetch Design, modeled from the shop drawing. A length of round steel bar with a U-slot milled through one end to cradle the aircraft's jack point.
Built to the dimensioned drawing: 1-15/16″ (1.9375″) cold-rolled steel round bar, 10″ long; 0.6875″ (11/16″) slot milled in from one end, rounded end centered 1.5″ from that end, cut clean through the bar. Tolerance ±0.010″, deburr all edges. Parametric.
v3machined finish
Both round ends chamfered lathe-style — 1 mm × 45°, applied before the slot is milled, so the fork-end bevel is interrupted by the slot exactly as turn-then-mill would produce it. The fork edges are then filleted in three separate steps — the top/bottom slot edges in one, and the two through-thickness (zy) pairs separately — so each can take its own radius. All 1 mm for now. The keeper.
end chamfer 1 mm × 45° (lathe)
fork fillets 1 mm
3 fillet steps
bar_dia 1.9375″
bar_len 10″

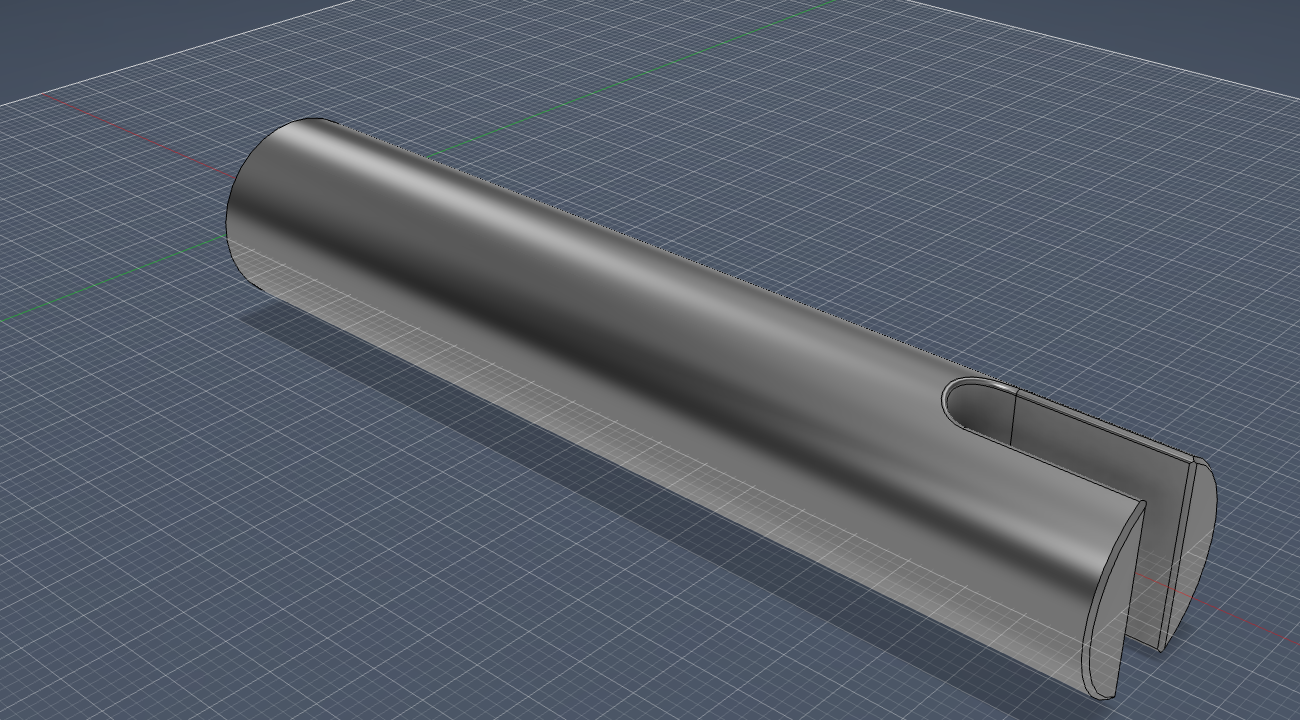

Lathe-chamfered ends (interrupted by the slot) + filleted fork — a machined finish.
v2all edges rounded — superseded
A slight 1 mm radius on every edge — matching the drawing's "deburr all edges" note. Softens the bar ends, the slot walls, and the fork tips so nothing is razor-sharp; the 10″ × 1.9375″ envelope is unchanged.
edge radius 1 mm
bar_dia 1.9375″
bar_len 10″
slot_width 0.6875″
deburred

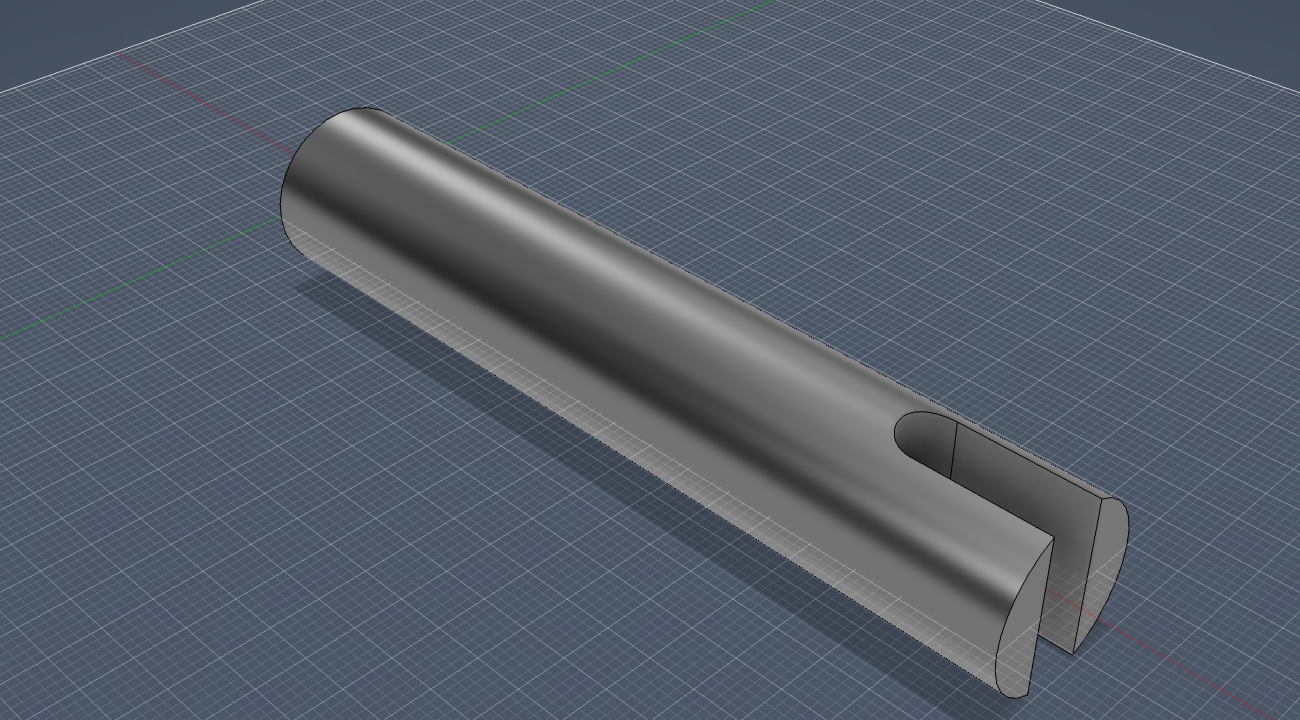

Every edge given a slight radius — the deburred part.
v1from the shop drawing — sharp edges
Round bar with a through-slot fork at one end (it stays a single piece — the slot opens from the end). The plain end seats in the jack; the fork straddles the axle/jack point. Modeled parametric:
bar_dia, bar_len, slot_width, and slot_center are all dials.
bar_dia 1.9375″
bar_len 10″
slot_width 0.6875″
slot_center 1.5″
cold-rolled steel
through-slot fork

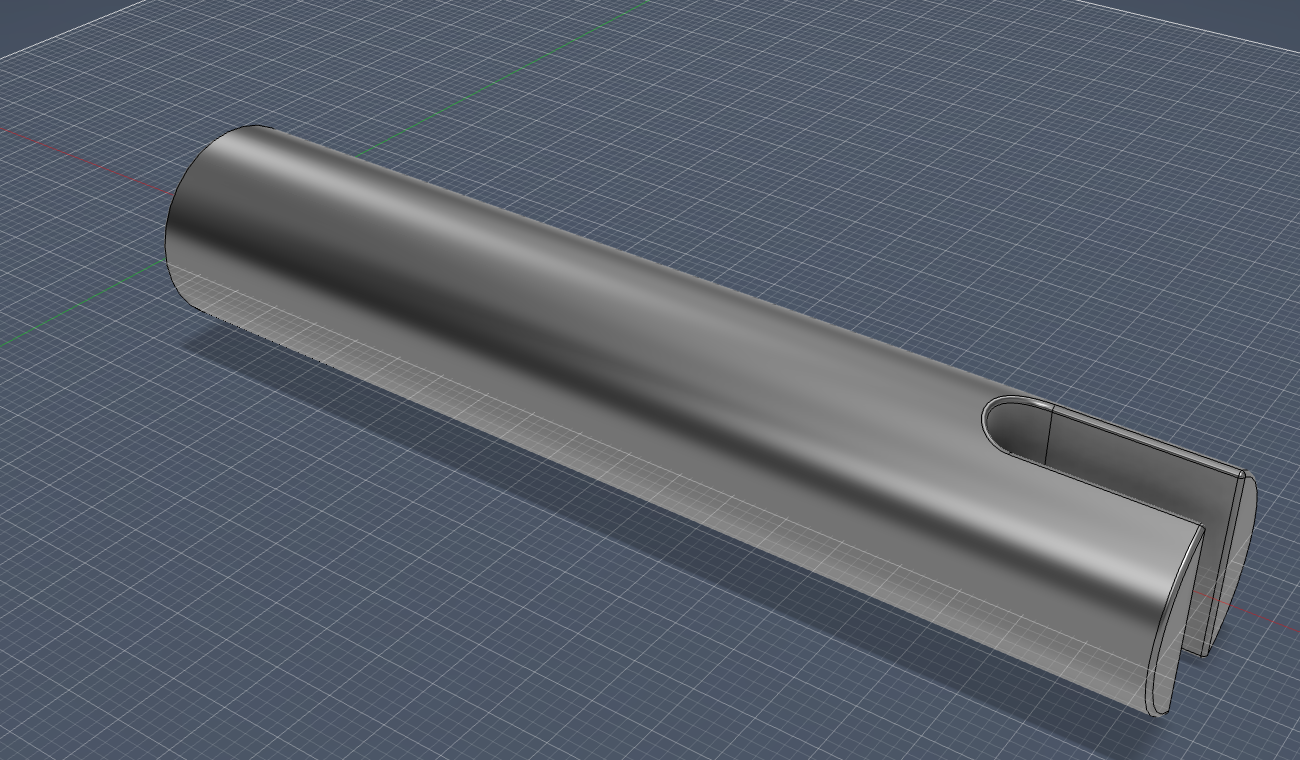

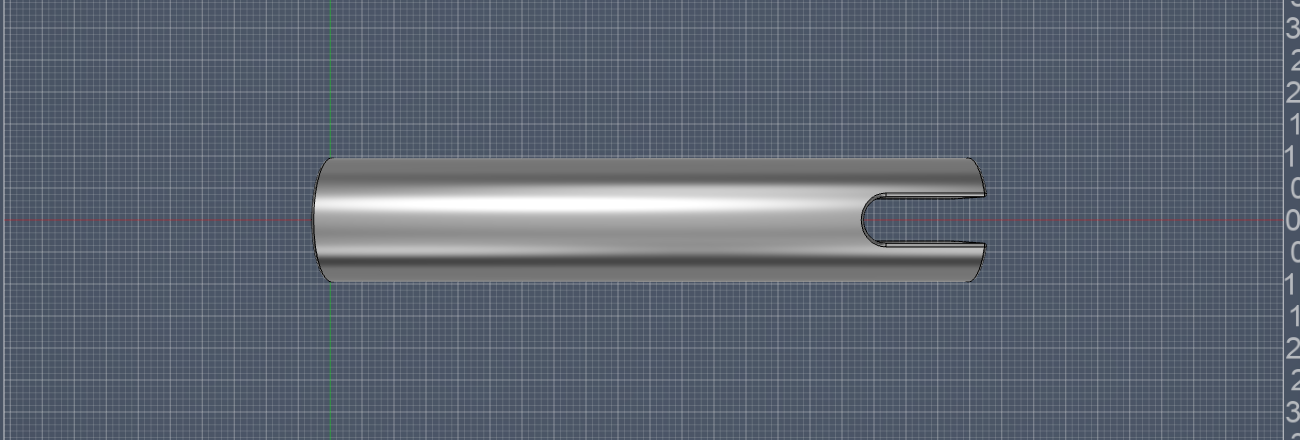

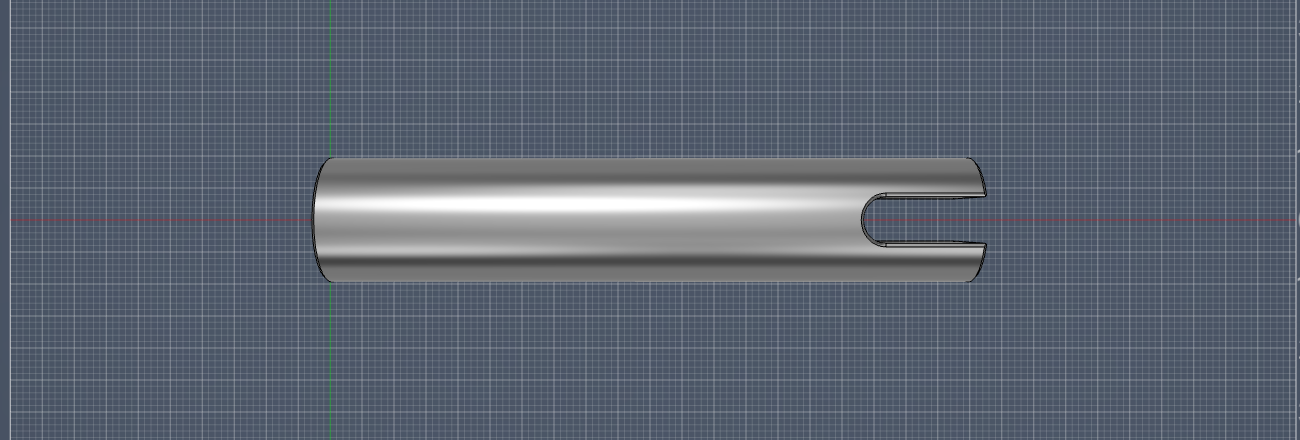

Top: isometric — the fork end. Bottom: top-down — the U-slot, matching the drawing's top view (0.6875″ wide, rounded end 1.5″ in).
